PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號(hào) |

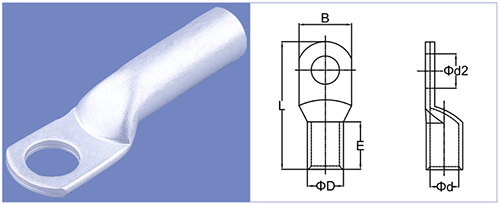

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
CL14-HM6 |
CL14-H-6 |
6.4 |
18.3 |
50 |
8.8 |
5.8 |
28.5 |
|
CL22-HM8 |
CL22-H-8 |
8.4 |
18.3 |
52 |
11.3 |
7.7 |
28.5 |
|
CL38-HM10 |
CL38-H-10 |
10.5 |
18.3 |
64 |
12.4 |
9.8 |
34 |
|
CL38-HM12 |
CL38-H-12 |
13 |
18.3 |
64 |
12.4 |
9.8 |
34 |
|
CL60-HM10 |
CL60-H-10 |
10.5 |
20.5 |
70 |
14 |
11 |
36 |
|
CL60-HM12 |
CL60-H-12 |
13 |
20.5 |
70 |
14 |
11 |
36 |
|
CL70-HM10 |
CL70-H-10 |
10.5 |
21.4 |
72 |
15 |
12 |
38 |
|
CL70-HM12 |
CL70-H-12 |
13 |
21.4 |
72 |
15 |
12 |
38 |
|
CL80-HM12 |
CL80-H-12 |
13 |
23.2 |
75 |
16 |
13 |
38 |
|
CL100-HM12 |
CL100-H-12 |
13 |
26 |
75 |
18 |
14 |
40 |
|
CL125-HM12 |
CL125-H-12 |
13 |
29 |
85 |
20 |
16 |
40 |
|
CL150-HM12 |
CL150-H-12 |
13 |
31.5 |
94 |
22 |
17 |
46 |
|
CL180-HM12 |
CL180-H-12 |
13 |
33 |
98 |
23 |
18.2 |
46 |
|
CL200-HM12 |
CL200-H-12 |
13 |
37 |
104 |
26 |
20 |
48 |
|
CL250-HM12 |
CL250-H-12 |
13 |
40 |
114 |
28 |
22 |
48 |
|
CL325-HM12 |
CL325-H-12 |
13 |
46 |
118 |
32 |
25 |
50 |
|
CL400-HM12 |
CL400-H-12 |
13 |
54 |
130 |
37 |
30 |
60 |
|
CL500-HM12 |
CL500-H-12 |
13 |
57.5 |
150 |
40 |
31 |
60 |
|
PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號(hào) |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
B-CL14-HM6 |
B-CL14-H-6 |
6.4 |
18.3 |
50 |
8.3 |
5.8 |
28.5 |
|
B-CL22-HM8 |
B-CL22-H-8 |
8.4 |
18.3 |
52 |
10.7 |
7.7 |
28.5 |
|
B-CL38-HM10 |
B-CL38-H-10 |
10.5 |
17.2 |
64 |
11.9 |
9.8 |
34 |
|
B-CL38-HM12 |
B-CL38-H-12 |
13 |
17.2 |
64 |
11.9 |
9.8 |
34 |
|
B-CL60-HM10 |
B-CL60-H-10 |
10.5 |
20 |
70 |
13.5 |
11 |
36 |
|
B-CL60-HM12 |
B-CL60-H-12 |
13 |
20 |
70 |
13.5 |
11 |
36 |
|
B-CL70-HM10 |
B-CL70-H-10 |
10.5 |
21.4 |
72 |
14.5 |
12 |
38 |
|
B-CL70-HM12 |
B-CL70-H-12 |
13 |
21.4 |
72 |
14.5 |
12 |
38 |
|
B-CL80-HM12 |
B-CL80-H-12 |
13 |
23.2 |
75 |
15.5 |
13 |
38 |
|
B-CL100-HM12 |
B-CL100-H-12 |
13 |
25.5 |
75 |
17.3 |
14 |
40 |
|
B-CL125-HM12 |
B-CL125-H-12 |
13 |
28 |
85 |
19.3 |
16 |
40 |
|
B-CL150-HM12 |
B-CL150-H-12 |
13 |
30.5 |
94 |
21.1 |
17 |
46 |
|
B-CL185-HM12 |
B-CL185-H-12 |
13 |
32.5 |
98 |
22.1 |
18.2 |
46 |
|
B-CL200-HM12 |
B-CL200-H-12 |
13 |
36 |
104 |
24.9 |
20 |
48 |
|
B-CL250-HM12 |
B-CL250-H-12 |
13 |
39.5 |
114 |
26.9 |
22 |
48 |
|
B-CL325-HM12 |
B-CL325-H-12 |
13 |
45 |
118 |
30.7 |
25 |
50 |
|
B-CL400-HM12 |
B-CL400-H-12 |
13 |
53.5 |
130 |
35.7 |
30 |
60 |
|
B-CL500-HM12 |
B-CL500-H-12 |
13 |
56 |
150 |
38.4 |
31 |
60 |
