PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

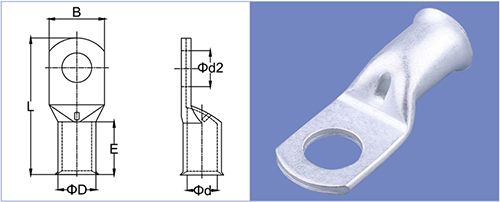

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

FC10M5

FC10-5

5.3

12

30.5

6.8

4.3

12

FC10M6

FC10-6

6.5

12

30.5

FC10M8

FC10-8

8.5

15

37

FC10M10

FC10-10

10.5

16

41

FC10M12

FC10-12

13

19

44

FC16M5

FC16-5

5.3

12

33.3

8

5.3

14

FC16M6

FC16-6

6.5

12

33.3

FC16M8

FC16-8

8.5

16

37.5

FC16M10

FC16-10

10.5

16

41.5

FC16M12

FC16-12

13

19

44

FC25M5

FC25-5

5.3

13.5

36.3

9.5

6.6

15

FC25M6

FC25-6

6.5

13.5

36.3

FC25M8

FC25-8

8.5

18

42

FC25M10

FC25-10

10.5

18

46

FC25M12

FC25-12

13

18

48

FC25M14

FC25-14

15

20

52.5

FC35M5

FC35-5

5.3

15

39.5

11

7.9

17

FC35M6

FC35-6

6.5

15

39.5

FC35M8

FC35-8

8.5

17

44

FC35M10

FC35-10

10.5

17

49

FC35M12

FC35-12

13

19

51

FC35M14

FC35-14

15

21

53.5

FC50M6

FC50-6

6.5

18

42.5

12.5

9.2

19

FC50M8

FC50-8

8.5

18

47

FC50M10

FC50-10

10.5

18

52

FC50M12

FC50-12

13

19

54

FC50M14

FC50-14

15

21

57.5

FC50M16

FC50-16

17

26

61

FC70M6

FC70-6

6.5

21

51

15

11

21

FC70M8

FC70-8

8.5

21

51

FC70M10

FC70-10

10.5

21

55

FC70M12

FC70-12

13

22

59

FC70M14

FC70-14

15

23

62.5

FC70M16

FC70-16

17

28

66

PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

FC70M20

FC70-20

21

30

72

15

11

21

FC95M8

FC95-8

8.5

25

56

17

13.1

25

FC95M10

FC95-10

10.5

25

60

FC95M12

FC95-12

13

25

62

FC95M14

FC95-14

15

25

66.5

FC95M16

FC95-16

17

25

70

FC95M20

FC95-20

21

30

76

FC120M8

FC120-8

8.5

28

64

19

14.5

26

FC120M10

FC120-10

10.5

28

64

FC120M12

FC120-12

13

28

66

FC120M14

FC120-14

15

28

69.5

FC120M16

FC120-16

17

28

72

FC150M10

FC150-10

10.5

30

71

21

16.2

30

FC150M12

FC150-12

13

30

73

FC150M14

FC150-14

15

30

73

FC150M16

FC150-16

17

30

75

FC185M12

FC185-12

13

33.5

81

23

18

32

FC185M14

FC185-14

15

33.5

85

FC185M16

FC185-16

17

33.5

87

FC185M20

FC185-20

21

33.5

91

FC240M10

FC240-10

10.5

38

93.5

26

20.6

35

FC240M12

FC240-12

13

38

93.5

FC240M14

FC240-14

15

38

93.5

FC240M16

FC240-16

17

38

93.5

FC240M20

FC240-20

21

38

93.5

FC300M12

FC300-12

13

41

96

28

23

44

FC300M14

FC300-14

15

41

102

FC300M16

FC300-16

17

41

102

FC300M20

FC300-20

21

41

106

FC400M12

FC400-12

13

46.5

115

32

26

44

FC400M14

FC400-14

15

46.5

115

FC400M16

FC400-16

17

46.5

115

FC400M20

FC400-20

21

46.5

118
