PART NO

規(guī)格/編碼

ITEM NO

品名型號(hào)

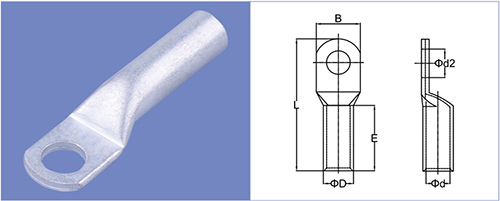

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

T1.5M4

T1.5-4

4.3

8.7

19

4

2.4

7

T1.5M5

T1.5-5

5.3

8.7

19

T1.5M6

T1.5-6

6.4

10

20

T2.5M4

T2.5-4

4.3

8.7

19

4.3

2.7

7

T2.5M5

T2.5-5

5.3

8.7

19

T2.5M6

T2.5-6

6.4

10.3

21

T2.5M8

T2.5-8

8.3

12

23

T4M4

T4-4

4.3

8.7

21.5

4.8

3.1

9.5

T4M5

T4-5

5.3

8.7

21.5

T4M6

T4-6

6.4

10.3

23.5

T4M8

T4-8

8.3

12.5

28.5

T6M4

T6-4

4.3

10.3

26

5.5

3.8

10

T6M5

T6-5

5.3

10.3

26

T6M6

T6-6

6.4

10.3

26

T6M8

T6-8

8.3

13.9

29

T6M10

T6-10

10.5

13.9

29

T10M4

T10-4

4.3

11.9

27.5

6.9

4.7

11.5

T10M5

T10-5

5.3

11.9

27.5

T10M6

T10-6

6.4

11.9

27.5

T10M8

T10-8

8.3

13.5

30.5

T10M10

T10-10

10.5

15

30.5

T10M12

T10-12

13.2

17

34

T16M5

T16-5

5.3

12

27.5

7.8

5.6

12

T16M6

T16-6

6.4

12

27.5

T16M8

T16-8

8.3

13.5

31

T16M10

T16-10

10.5

16

32

T16M12

T16-12

13.2

17

37.5

T25M6

T25-6

6.4

14

34

9.5

7.1

13.5

T25M8

T25-8

8.3

14

34

T25M10

T25-10

10.5

16

37

T25M12

T25-12

13.2

18

40

T35M6

T35-6

6.4

16.5

39

11

8.2

16

T35M8

T35-8

8.3

16.5

39

T35M10

T35-10

10.5

16.5

43

T35M12

T35-12

13.2

18

43

T35M14

T35-14

14.5

20

48

T35M16

T35-16

16.5

23

48

T40M6

T40-6

6.4

17

44

11.2

9

17

T40M8

T40-8

8.3

17

44

T40M10

T40-10

10.5

17

44

T40M12

T40-12

13.2

18

44

T50M6

T50-6

6.4

18

45

12.5

9.5

20

T50M8

T50-8

8.3

18

45

T50M10

T50-10

10.5

18

49

T50M12

T50-12

13.2

18

49

T50M14

T50-14

14.5

22

54

T50M16

T50-16

16.5

25

62

14

9.5

23

T50M20

T50-20

21

28

68

PART NO.

規(guī)格/編碼

ITEM NO.

品名型號(hào)

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

T70M8

T70-8

8.3

21.5

47.6

15

11.5

20

T70M10

T70-10

10.5

21.5

51.6

T70M12

T70-12

13.2

21.5

51.6

T70M14

T70-14

14.5

21.5

62.6

T70M16

T70-16

16.5

21.5

62.6

T70M20

T70-20

21

30

62.6

T95M8

T95-8

8.3

25

55.8

17

13.5

22

T95M10

T95-10

10.5

25

55.8

T95M12

T95-12

13.2

25

55.8

T95M14

T95-14

14.5

25

66.8

17

13.5

22

T95M16

T95-16

16.5

25

66.8

T95M20

T95-20

21

30

66.8

T120M10

T120-10

10.5

29

71.5

20

15.6

27

T120M12

T120-12

13.2

29

71.5

T120M14

T120-14

14.5

29

71.5

T120M16

T120-16

16.5

29

71.5

T120M20

T120-20

21

29

71.5

T150M10

T150-10

10.5

30.6

78

21

16.5

32

T150M12

T150-12

13.2

30.6

78

T150M14

T150-14

14.5

30.6

78

T150M16

T150-16

16.5

30.6

78

T150M20

T150-20

21

30.6

78

T185M10

T185-10

10.5

34

84

23.6

18.4

34

T185M12

T185-12

13.2

34

84

T185M14

T185-14

14.5

34

84

T185M16

T185-16

16.5

34

84

T185M20

T185-20

21

34

84

T240M10

T240-10

10.5

38.5

90

26.4

21.2

37

T240M12

T240-12

13.2

38.5

90

T240M14

T240-14

14.5

38.5

90

T240M16

T240-16

16.5

38.5

90

T240M20

T240-20

21

38.5

90

T300M10

T300-10

10.5

42

96

28.6

23.4

40

T300M12

T300-12

13.2

42

96

T300M14

T300-14

14.5

42

96

T300M16

T300-16

16.5

42

96

T300M20

T300-20

21

42

96

T400M10

T400-10

10.5

48

104.7

32.8

26.8

37

T400M12

T400-12

13.2

48

104.7

T400M14

T400-14

14.5

48

104.7

T400M16

T400-16

16.5

48

104.7

T400M20

T400-20

21

48

104.7

T500M10

T500-10

10.5

55

115.5

38.4

29.8

46.5

T500M12

T500-12

13.2

55

115.5

T500M14

T500-14

14.5

55

115.5

T500M16

T500-16

16.5

55

115.5

T500M20

T500-20

21

55

115.5

T630M10

T630-10

10.5

64

133.1

44.7

34.5

50

T630M12

T630-12

13.2

64

133.1

T630M14

T630-14

14.5

64

133.1

T630M16

T630-16

16.5

64

133.1

T630M20

T630-20

21

64

133.1
